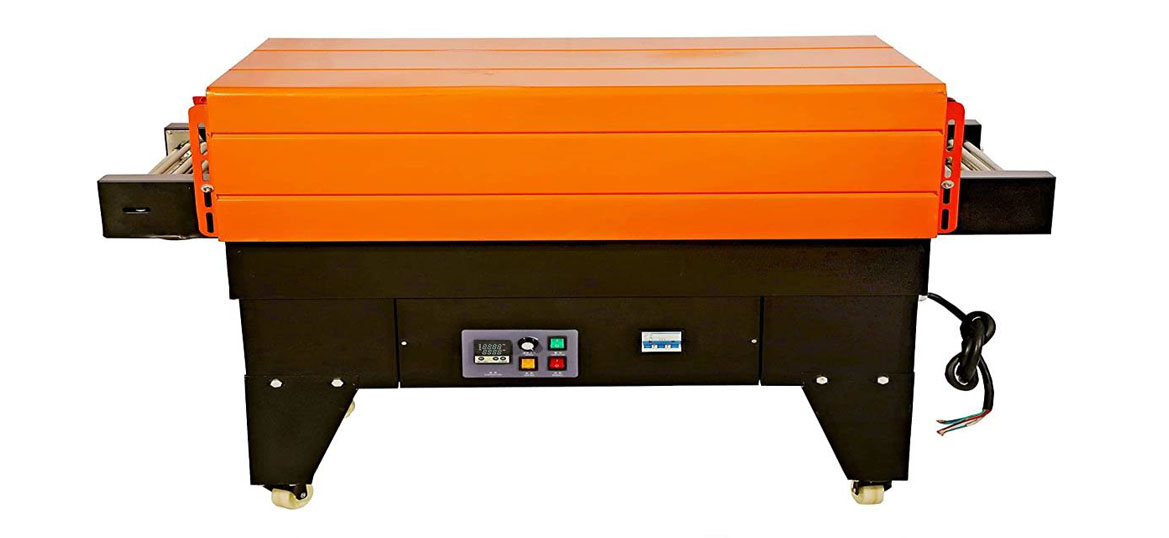

Shrink tunnel Models adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type. Shrink tunnel are applied to heat shrinkable film such as PVC, POF, PP etc
Features
Model | SPS 3020 | SPS | SPS 4535 L | SPS 6535 L |
---|---|---|---|---|
Tunnel Size (W x H) mm | 300 x 200 | 450 x 250 | 450 x 350 | 650 x 350 |
Voltage (V/Hz) | 220/50 | 220/50 -380 / 50 | 380/50 | 380/50 |
Power Consumption (KW) | 4.5 | 6.5 | 9.6 | 12.5 |
Conveyor Loading (Kg) | 10 | 10 | 30 | 30 |
Heating Furnace (l x w x h) mm | 900 x 300 x 50-200* | 900 x 450 x 50-200* | 1200 x 450 x 50-350* | 1200 x 650 x 50-350* |
External dimensions (l x w x h ) ( mm) | 1200 x 500 x 800 | 1200 x 650 x 1240 | 1200 x 650 x 1340 | 1200 x 850 x 1340 |
Heating Time (minutes) | 10 | 10 | 10 | 10 |
Cooling Time (minutes) | 15 | 15 | 15 | 15 |
Net Weight ( Kg) | 70 | 90 | 120 | 150 |
